Atlas CAL BT65

The CAL (Cant And Loc) Atlas Bipods were developed for shooters that do not desire the Panning feature.

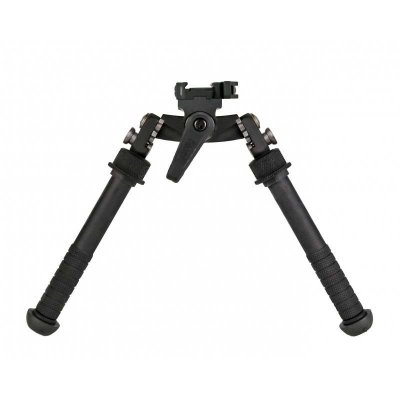

The BT65-LW17 mounts directly to any 1913 style Picatinny rail via the included ADM-170-S Lever.
It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components.
We chose to support a legend in the shooting sports by using the original KMW “Pod-Loc”.

• Height Range: 4.75–9.0"
• Cant: 45 degrees
• Position Button 0.5" diameter
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Larger, stronger inner legs
• Weight: 14.57 ounces
• Footprint: 9–12.5"

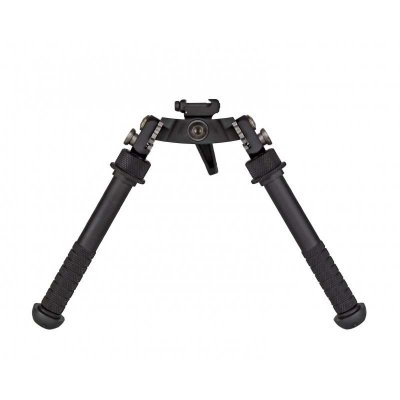

The BT65 mounts directly to any 1913 style Picatinny rail via a low profile two screw clamp assembly. It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only. We chose to support a legend in the shooting sports by using the original KMW “Pod-Loc”.

• Height Range: 4.9 - 9.2" (6.4” at 90°)
• Preloaded Cant: 45 degrees
• Position Button 0.5" diameter
• 5 leg positions: 0, 45, 90, 135 & 180 degrees
• Non-Rotating Legs: outer leg does not rotate around inner leg
• Larger, stronger inner legs
• Weight: 12.87 ounces
• Footprint: 9–12.5"
