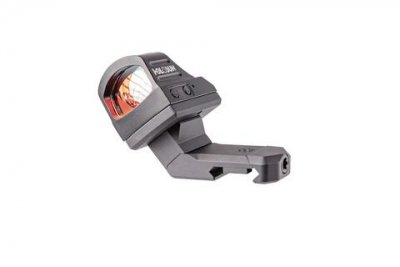

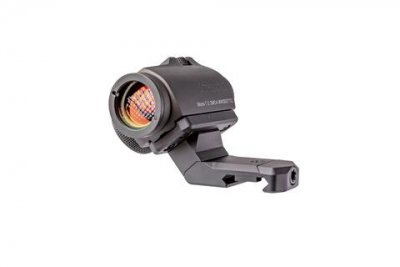

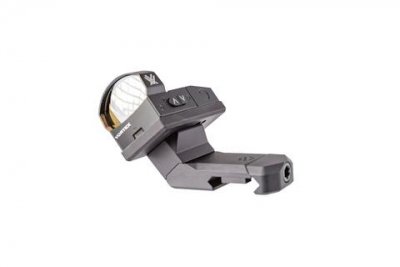

Arisaka Offset Optic Mount

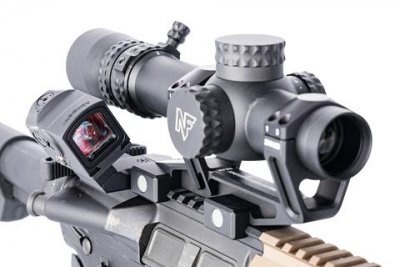

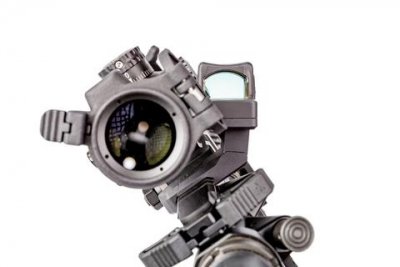

The Arisaka Offset Optic Mount is a modular mounting solution that allows the user to select a 35 or 45 degree offset position for their red dot sight without additional components. The 35 degree position brings the red dot sight up closer to slimmer, smaller scopes, while the 45 degree position provides additional clearance around wider turrets.

The mount is set to 35 or 45 degrees by reversing the stem between the optic plate and base during assembly. The mount's unique geometry correctly aligns the optic vertically over the bore and maintains a consistent height at both 35 and 45 degrees.

Plates Sold Separately

Standard height (for 1.5" to 1.8" scope mounts):

• Plate 1: Docter, Eotech, Insight, Meopta, Vortex Venom/Viper, Burris Fastfire III
• Plate 2: Trijicon RMR, SRO, Holosun 407C, 507C, 508T
• Plate 3: C-More, Vortex Razor, SIG Romeo 3
• Plate 4: Leupold Delta Point Pro, Holosun 407K, 507K, JPoint, Shield RMS
• Plate 5: Aimpoint Micro T1/T2/H1/H2, SIG Romeo 5 (not 5X), Holosun HS403, HS503, HS515, HS530
• Plate 6: Aimpoint Acro
• Plate 13: Holosun 509T
• Plate 15: SIG Romeo 1 and Romeo 1 Pro
• Plate 17: Picatinny Rail

Tall height (1.9" to 2.2" scope mounts):

• Plate 8: Trijicon RMR, SRO, Holosun 407C, 507C, 508T
• Plate 11: Aimpoint Micro T1/T2/H1/H2, SIG Romeo 4, 5 (not 5X), Holosun HS403 (not A), HS503, HS515, HS530

Do not exceed 20 inch lbs of torque on the screws that attach the optic to the plate.

• Weight: 2.0 oz without optic.
• Length: 1.0" for the base, which occupies three Picatinny slots (twin recoil lugs and clamping screw).
• Height: The base sits 0.180" above the surface of the Picatinny rail.
