Kahles K328i DLR

The groundbreaking K328i sets new performance standards with a pioneering new-generation optical design. It offers a 40 % wider field of view, an exceptionally comfortable eyebox and 8x zoom with perfect optical performance across the entire adjustment range.

• Revolutionary optical design with a 40 % wider field of view* and an exceptional eyebox
• 8x zoom with perfect optical performance across the entire adjustment range

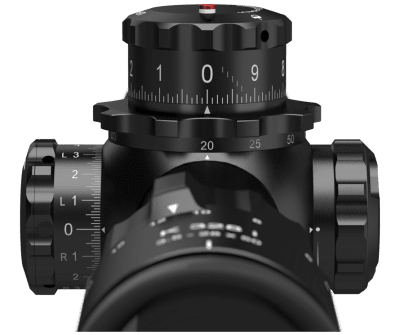

• Windage adjustment on the left or right, patented parallax adjustment integrated in the elevation turret
• 100 clicks per rotation – absolutely reliable repeat accuracy and clearly defined clicks
• Extra-large turret lettering for easy and fast reading
• Precise illuminated reticles in 1st focal plane

Technical data:

• Magnification: 3,5 - 28
• Objective lens diameter: 50 mm
• Exit pupil: 1,8 - 7,4 mm
• Eye relief: 92 mm
• Field of view: 14,3 - 1,8 m/100 m
• Diopter compensation: +2 / -3 dpt
• Twilight factor (DIN 58388): 13,2 - 37,4
• Impact correction per click: .1 MRAD
• Adjustment range (E/W): 3,4 / 1,3 m/100 m
• Parallax adjustment: 20 m till ∞
• Tube diameter: 36 mm
• Length: 360 mm
• Weight: 1040 g
• Focal plane: 1.
• Illuminated: Yes
• Warranty: 10 (2 electronics)

REFINED introduces:

• 10 MIL Windage – increased usability in dynamic environments
