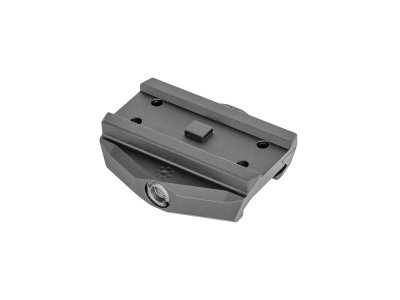

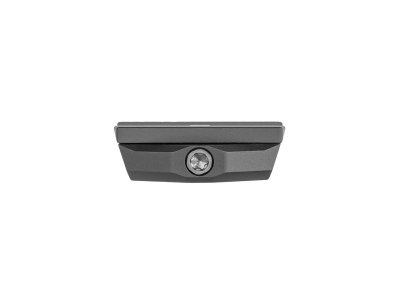

Arisaka Low Aimpoint Micro Mount

The Arisaka Low Aimpoint Micro Mount is designed for the Aimpoint Micro T1 and T2 optics, and will also function with other red dots using the same footprint, including the Aimpoint H1/H2, Aimpoint Comp M5/M5S, Aimpoint Duty, Sig Romeo 5, Vortex Crossfire, and Holosun HS503/515/530.

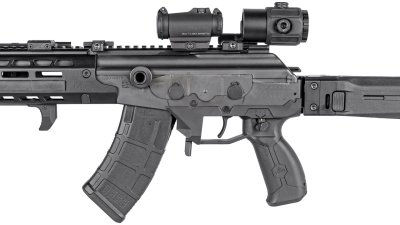

The 0.9" optic centerline matches up with the Arisaka Low Magnifier Mounts, and is ideal for use on firearms like the IWI Galil Ace, SAN Swiss SG550/SG551/SG552/SG553, and AK platforms.

Please note: the Aimpoint Comp M5S and Aimpoint Duty are 10mm taller than the regular Aimpoint Micro red dot sights, which must be factored into the final height of the optic, and will prevent them from lining up with the Arisaka Low Magnifier Mounts.

• Weight (including screws): 1.6 oz
• Optic Centerline: 0.9" with Aimpoint Micro T1/T2

Includes all necessary screws and tools to attach optic to mount. Recommended torque values:

• Picatinny clamp - 50 inch lbs (5.7 Nm)
• Optic to mount - 11.9 inch lbs (1.35 Nm)

Additional mounting details: the Aimpoint Micro mounting interface features three horizontal surfaces and two angled surfaces. The optic is supposed to contact the mount only on the angled surfaces, which wedges it into place and prevents the optic from changing zero under recoil or harsh handling. It is completely normal to see a tiny gap between the optic and horizontal surfaces of the mount.

• Hardware: One 10-32x1.25" torx socket cap screw, four M3x4mm torx button head screw.
