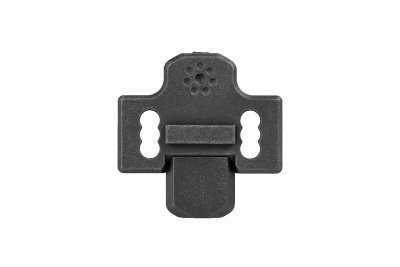

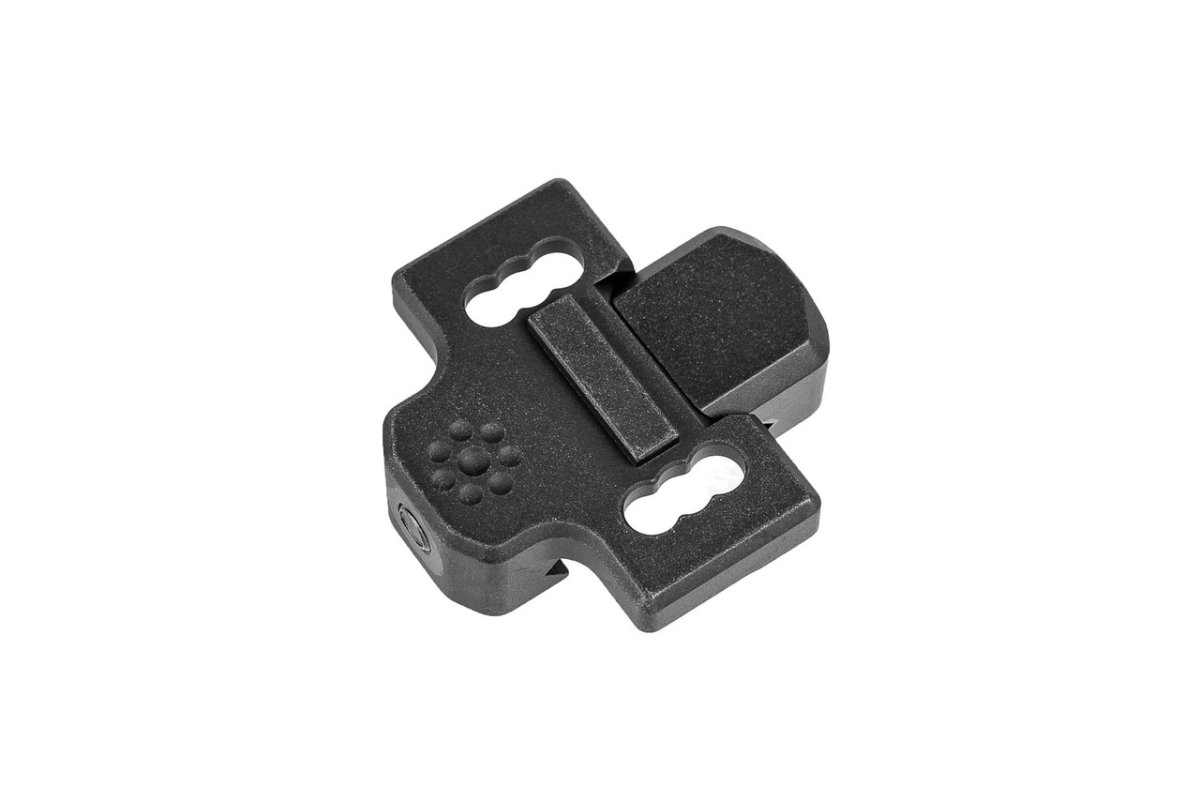

Arisaka Inline Scout Mount Picatinny

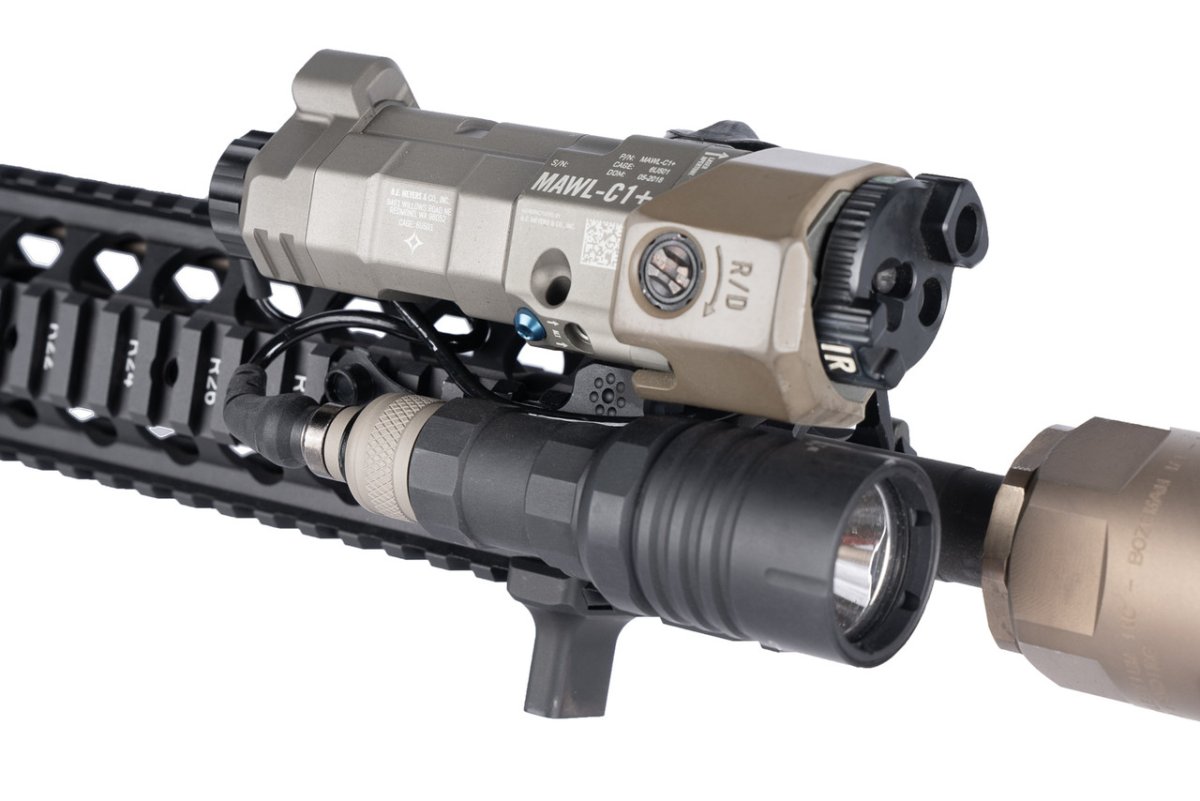

The Arisaka Inline Scout Mount (ISM) is designed for use with Surefire Scout Lights, the Modlite PLH and OKW weapon lights, the Arisaka 300, 600, 18650 and 18350 Series, and the Streamlight Protac Rail Mount lights. It replaces the stock Picatinny rail adapter with a low profile mount that tucks the light underneath either side of the B.E. Meyers MAWL laser/illuminator series. Three positions on the mount allow for different diameter light heads to clear the MAWL without interference.

Compatible with the Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), CD REIN, and Arisaka 300, 600, 18650 and 18350 Series.

• Length: 1.265"
• Thickness: 0.2"
• Weight: 0.6 oz

Includes necessary screws to attach light body to mount. Requires a T27 Torx/IP27 TorxPlus and T20 Torx/IP20 TorxPlus driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights.

Recommended torque:

• 20 inch lbs for light body and 30 inch lbs for clamping screw with low/medium strength threadlocker (Loctite 222 or 243).

Hardware: One 10-32x1.25" Torx cap head screw, two 8-32x3/8" Torx flat head screws.
