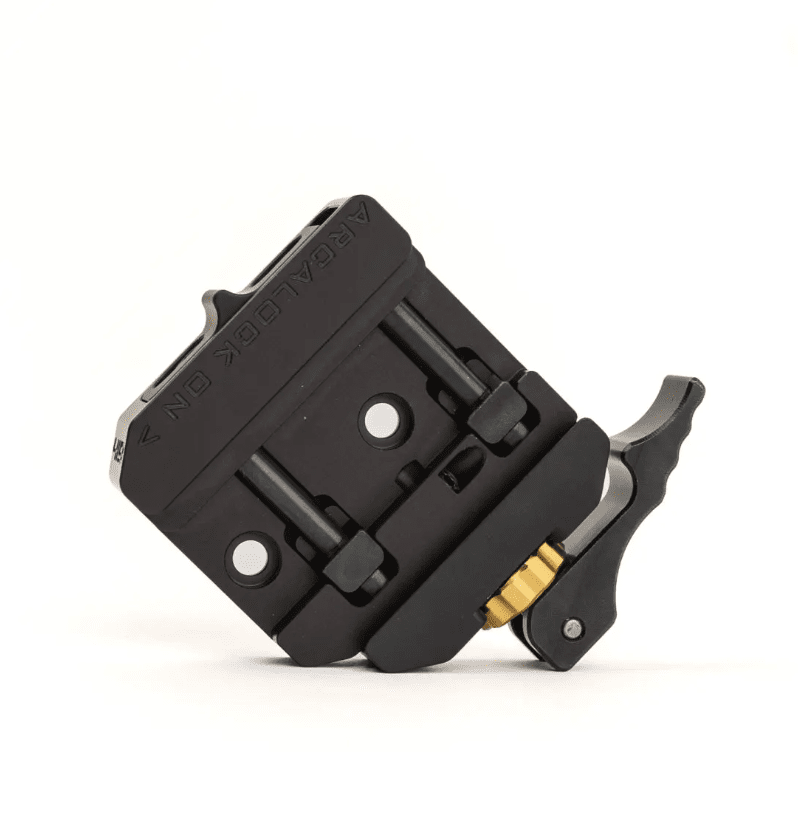

Area 419 ARCALOCK Dual-Clamp with Picatinny

“We are big ARCALOCK people, and think it’s the best solution for most people trying to shoot mid- to long-range. We also know that there are still a lot of rifles out there with Pic sections on the front end, or bipods that need to be used on both ARCA and Pic attachment points. Finally, we have a clamp that can do both – the ARCALOCK Dual Clamp.” – Area 419

The ARCALOCK Dual Clamp works with Area 419 ARCALOCK Rail systems, ARCA rails from other manufacturers and Picatinny Rails with minimum of 4 slots. It will bolt directly to any “NC” (No Clamp) style of Atlas Bipods (except the 5-H which requires Extension Spigot for compatibility). Compatible Atlas^® Bipod models listed below.

The ARCALOCK Dual Clamp is precision milled from aerospace grade 6061-T6 aluminum and stainless steel. Complete function and features detailed below.

COMPATIBLE ATLAS BIPOD MODELS:

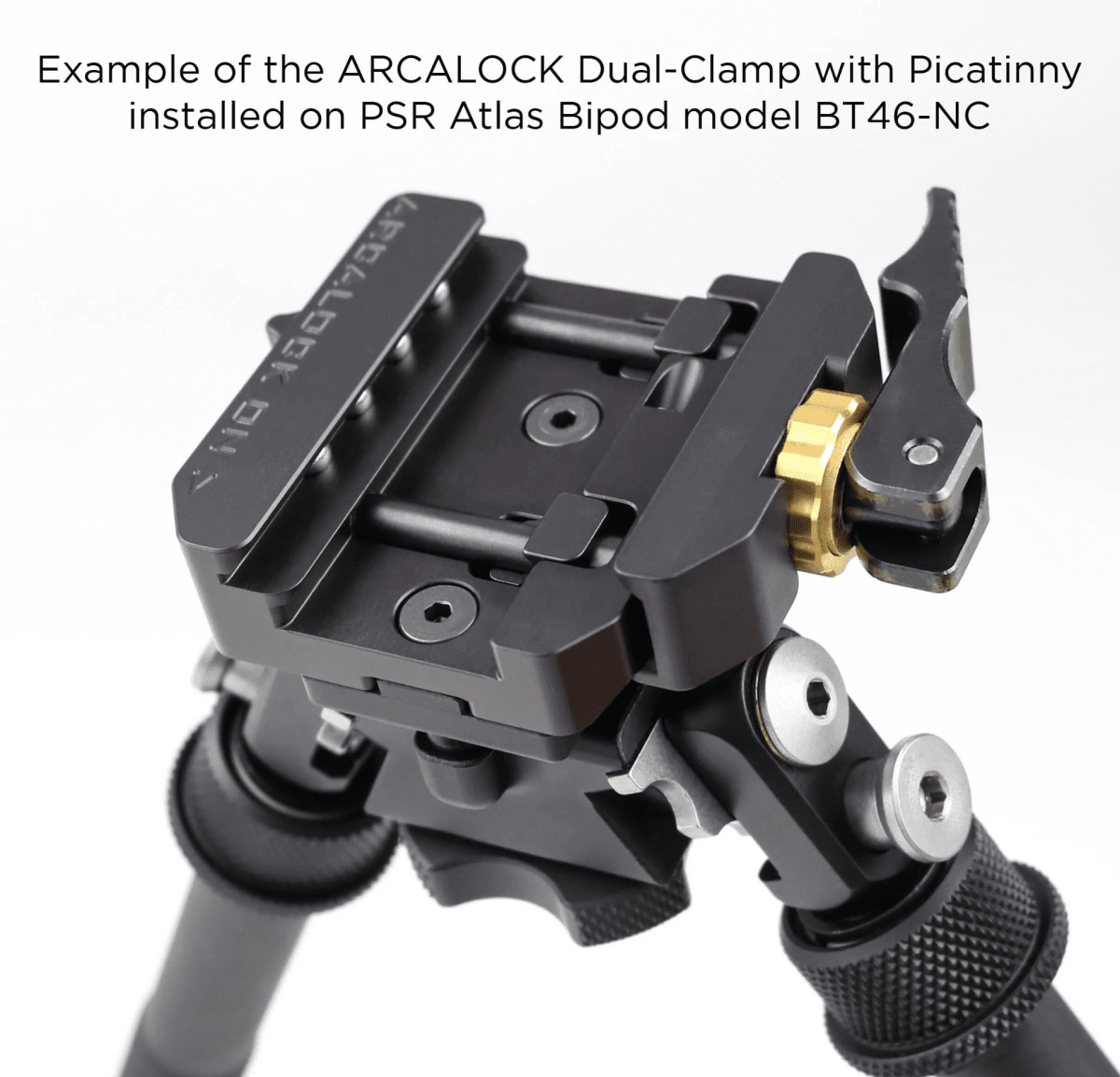

• BT10-NC, BT46-NC, BT47-NC
• The BT35-NC: requires the Extension Spigot for clearance of the cradle and operation of the clamp’s knob.
• BT65-NC, BT69-NC, BT72-NC: Due to additional length of the Area 419 ARCALOCK Dual Clamp, it interferes with the complete 360º rotation of the Pod-Loc lever found on our CAL and Super CAL Series of Atlas Bipods. Because the Pod-Loc lever position can be adjusted for positioning by pulling the lever directly away from the body of the CAL and rotating to desired position, it does NOT effect function of the Bipod or Clamp. This positioning can be repeated until optimal position is achieved.

KEY FEATURES PROVIDED BY AREA 419:

• Adjustable tension to ensure a great fit on either mounting surface
• “On/Off” ARCALOCK switch for ideal fitment on either Area 419 ARCALOCK Rails or ARCA rails from other manufacturers
• Hardened steel pins and grabbers for exceptional Picatinny lock-up
• Requires a minimum of four (4) Picatinny rail slots
• ARMS 17S attachment for use with Atlas^® Bipods listed above
